Technical Data
What we provide

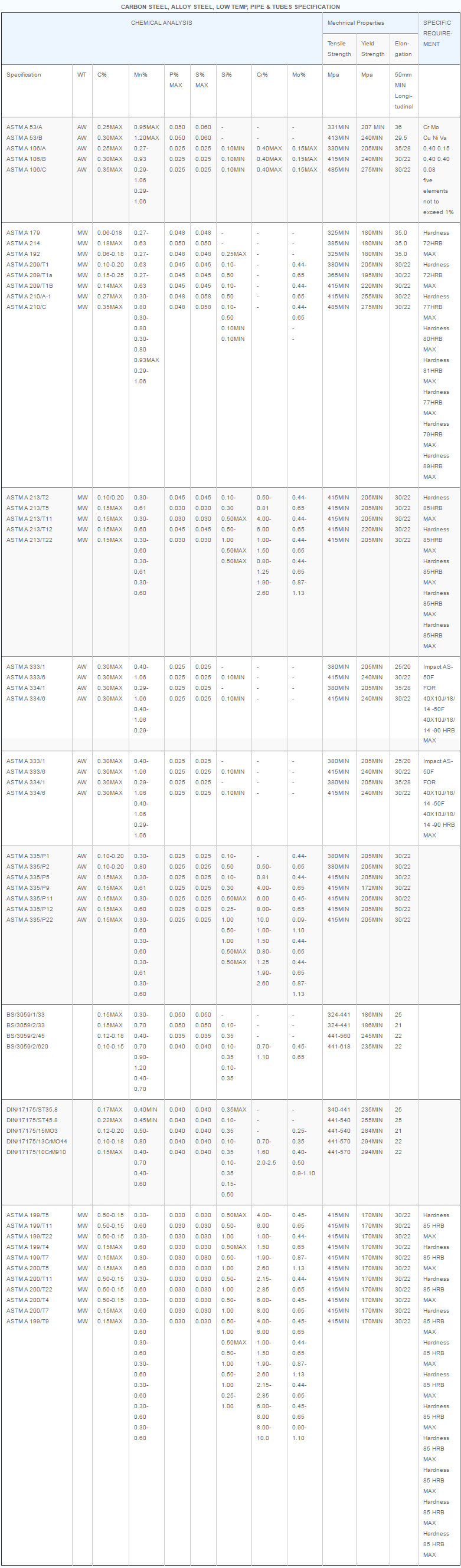

CARBON STEEL, ALLOY STEEL, LOW TEMP, PIPE & TUBES SPECIFICATION

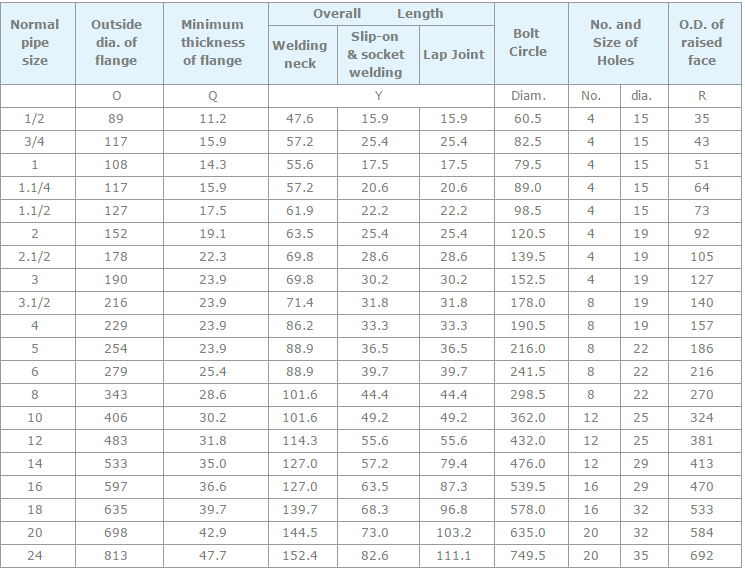

150 LB. FLANGES

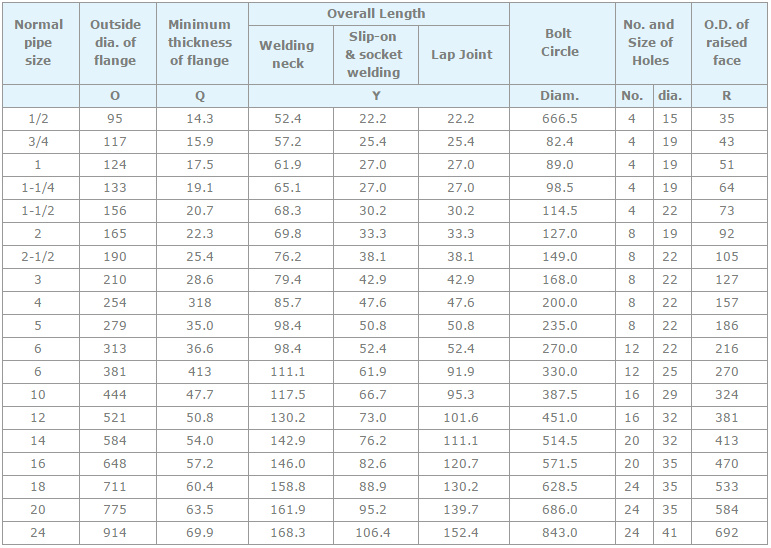

300 LB. FLANGES

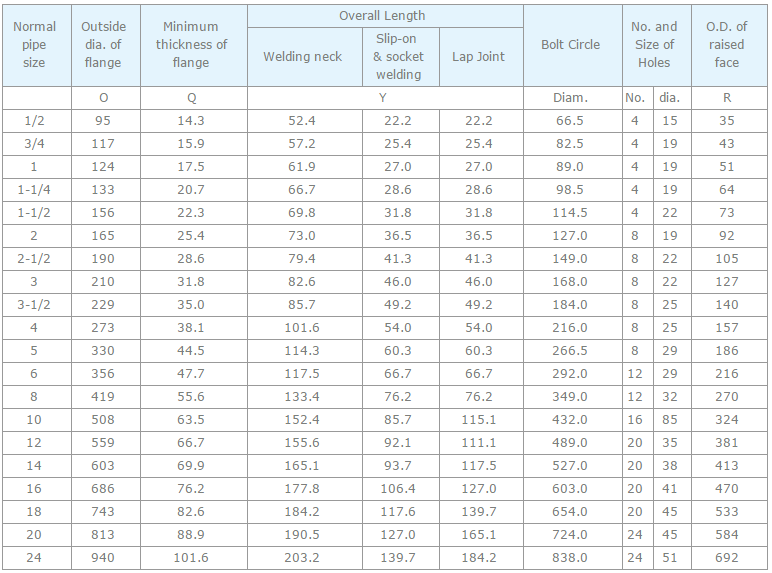

600 LB. FLANGES

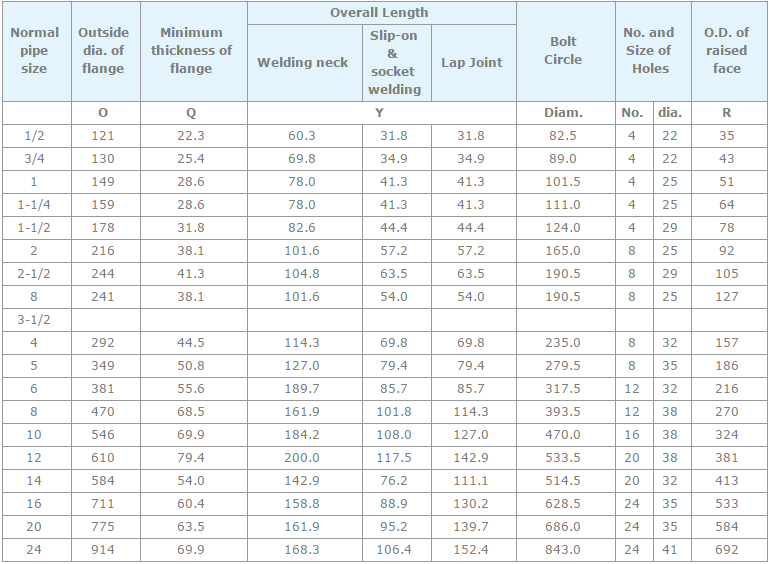

900 LB. FLANGES

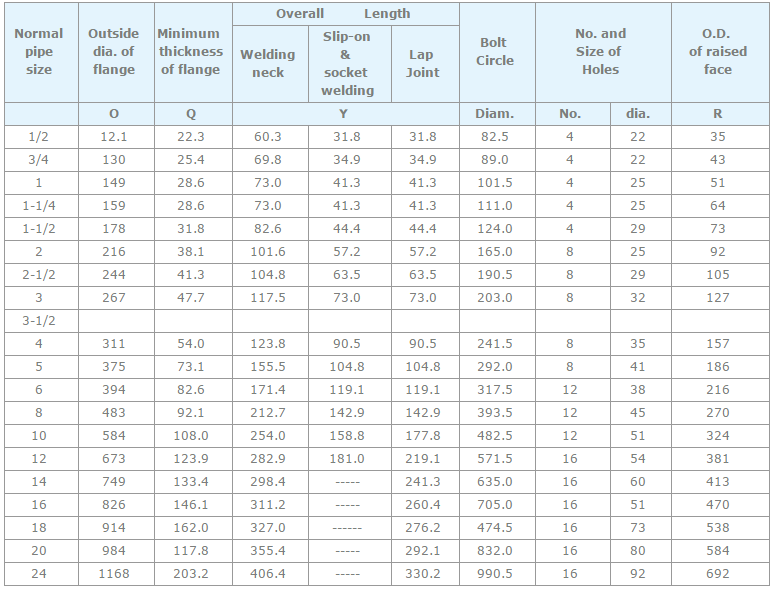

1500 LB. FLANGES

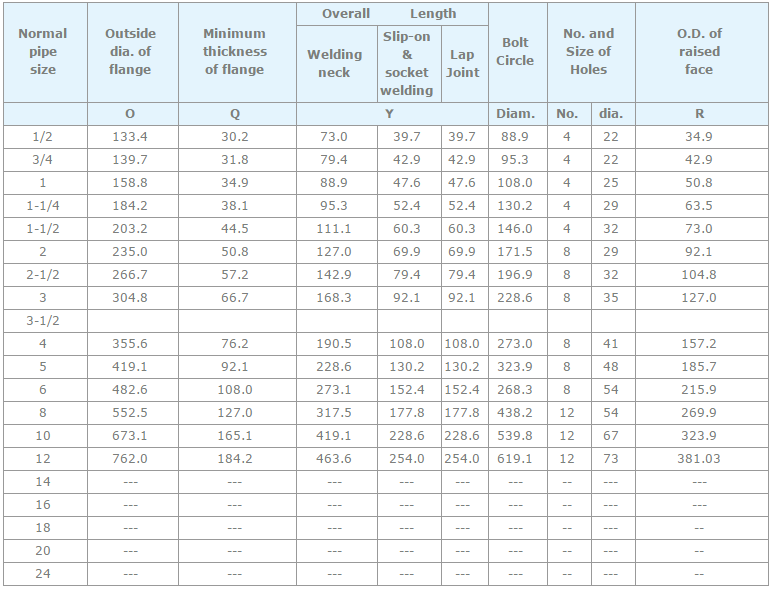

2500 LB. FLANGES

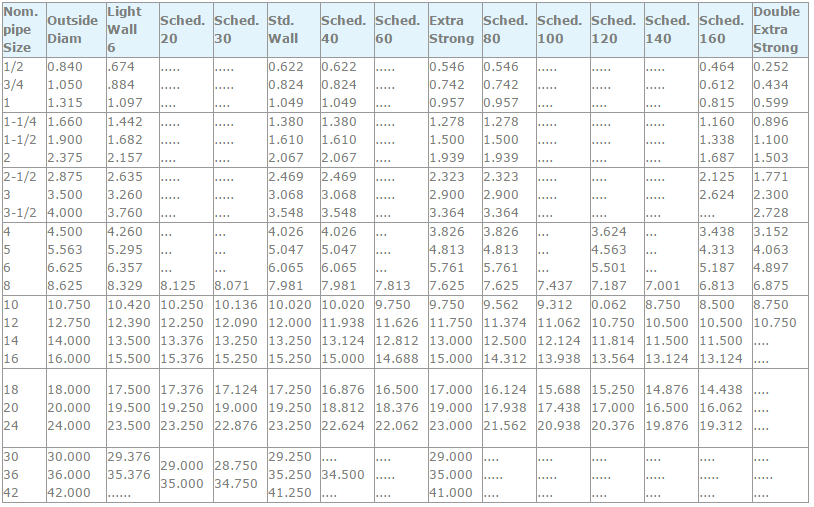

WELDING NECK FLANGE BORES

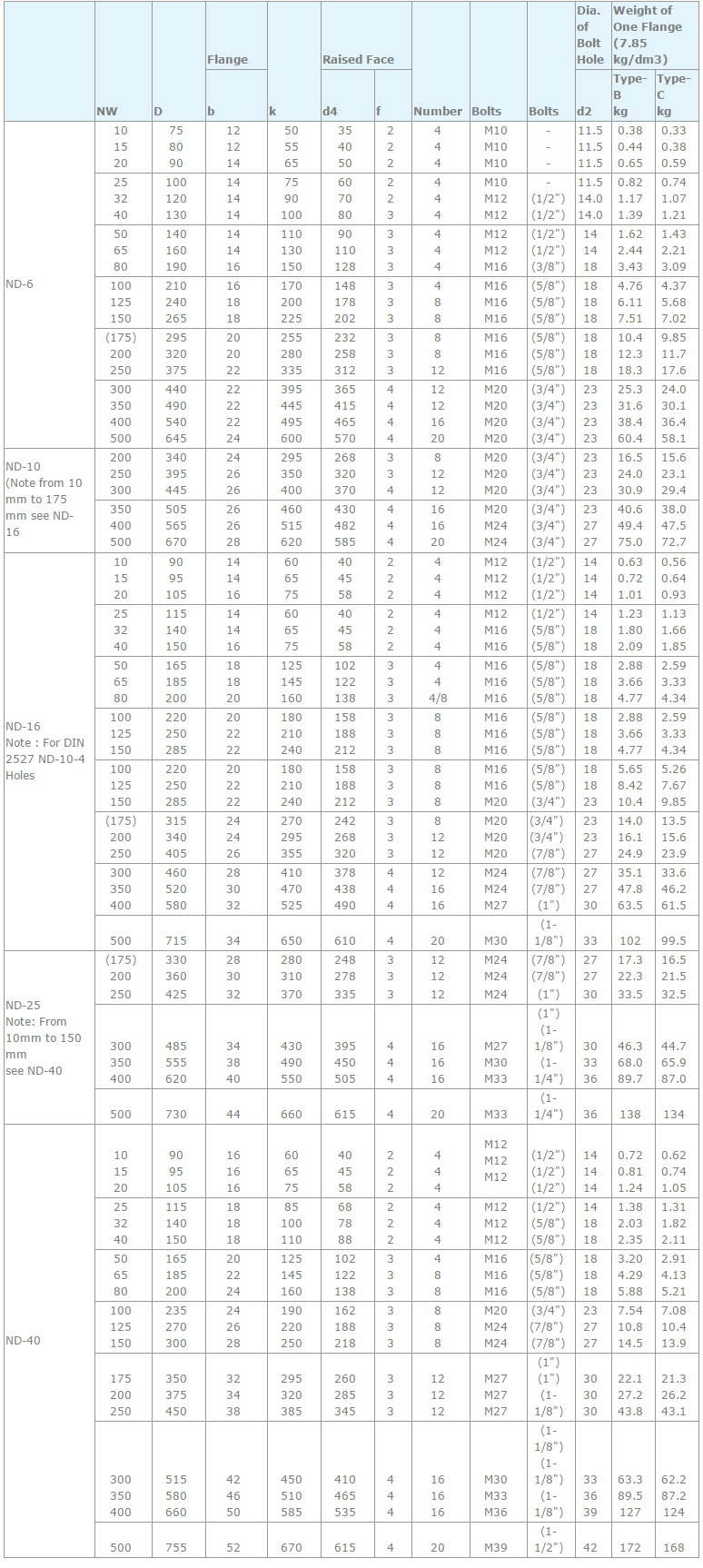

DIN 2527

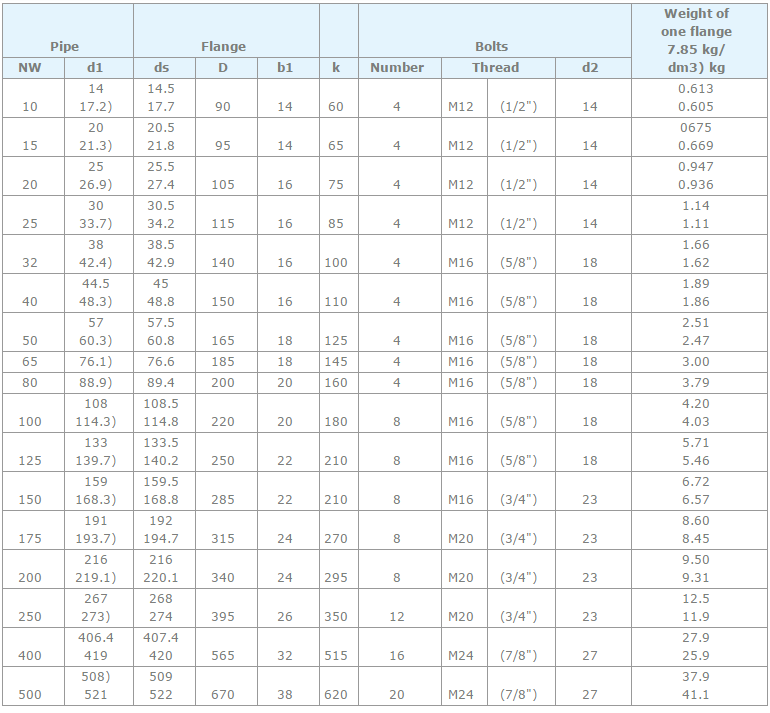

DIN 2576 FLANGES

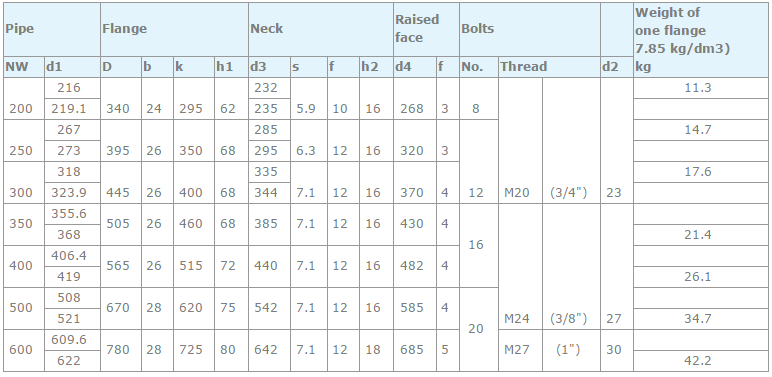

DIN 2632 WELDING NECK FLANGES FOR NOMINAL PRESSURE 10

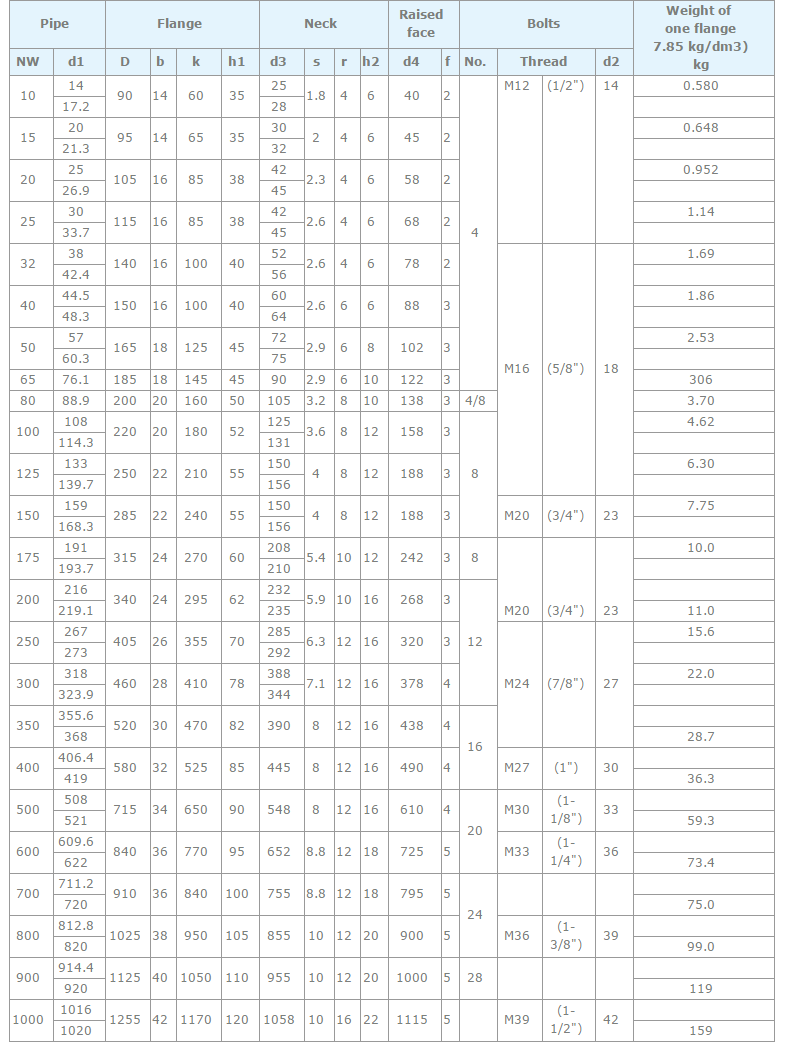

DIN 2633 WELDING NECK FLANGES NOMINAL PRESSURE 16

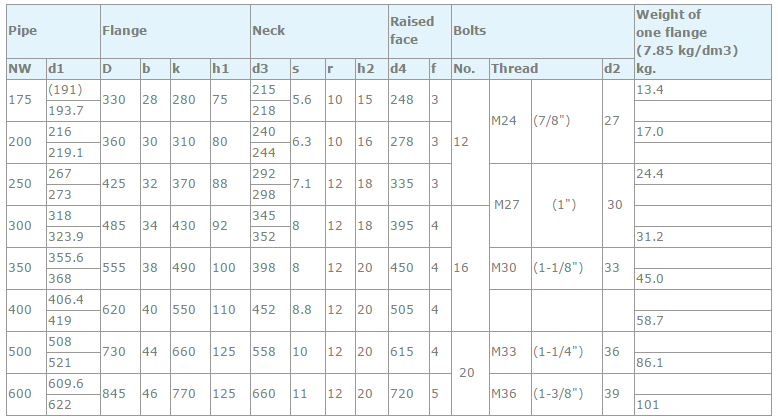

DIN 2634 WELDING NECK FLANGE NOMINAL PRESSURE 25

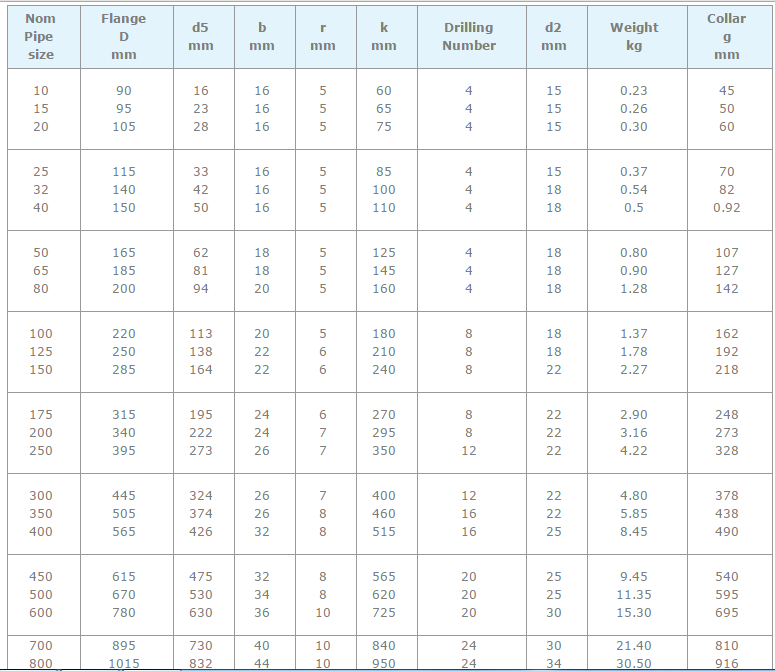

DIN 2642, DIN Connections LOOSE FLANGE FOR FLANGE COLLAR PN 10

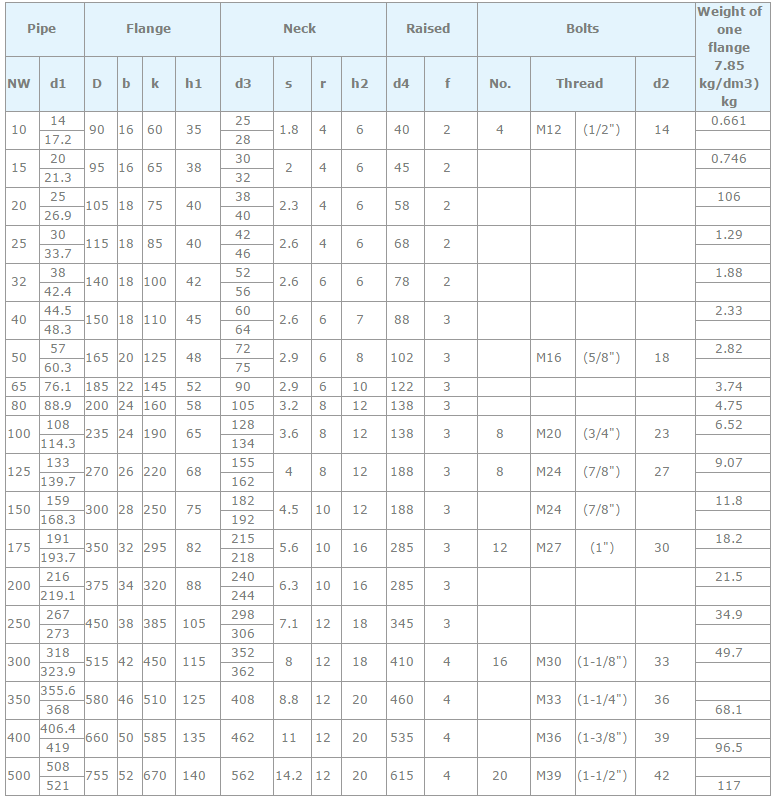

DIN 2635 WELDING NECK FLANGES NOMINAL PRESSURE 40

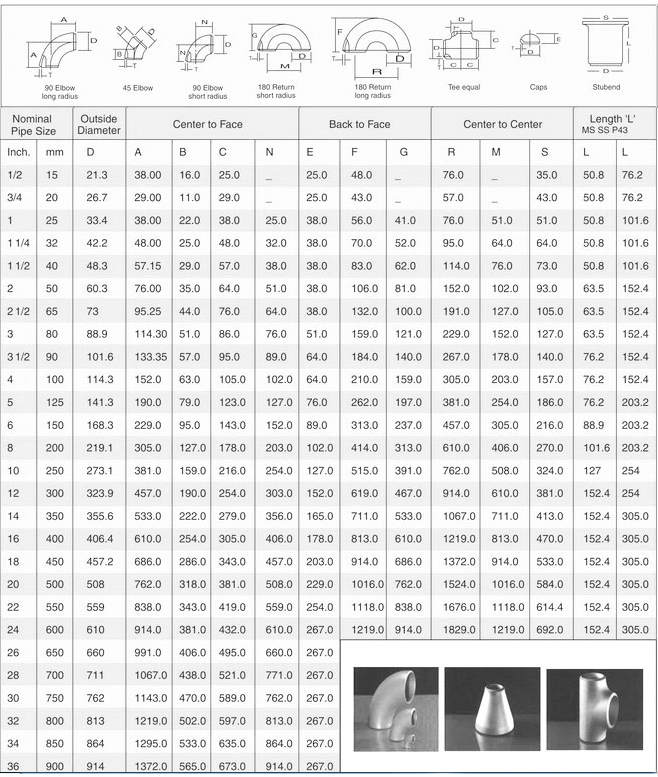

BUTTWELD FITTINGS DIMENSIONAL STANDARD ANSI B-16.9, B-16.28, MS SS P43

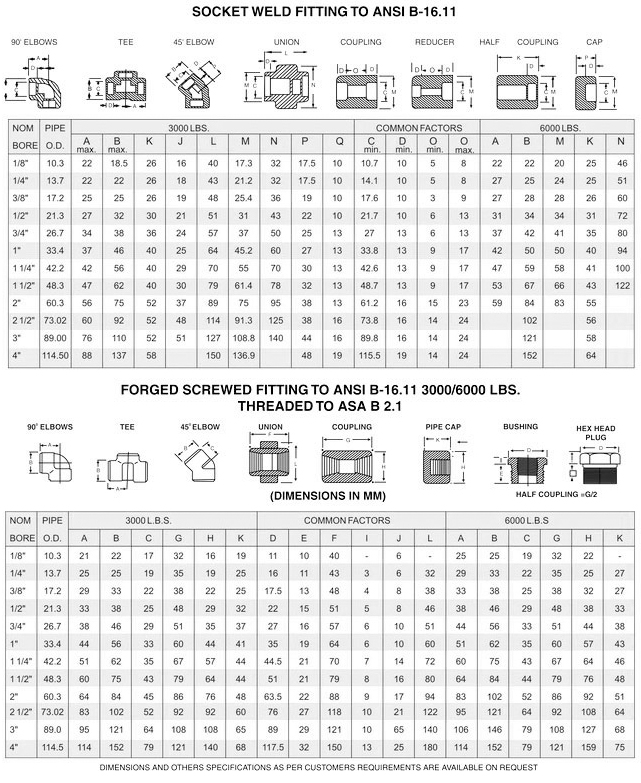

SOCKETWELD FITTINGS

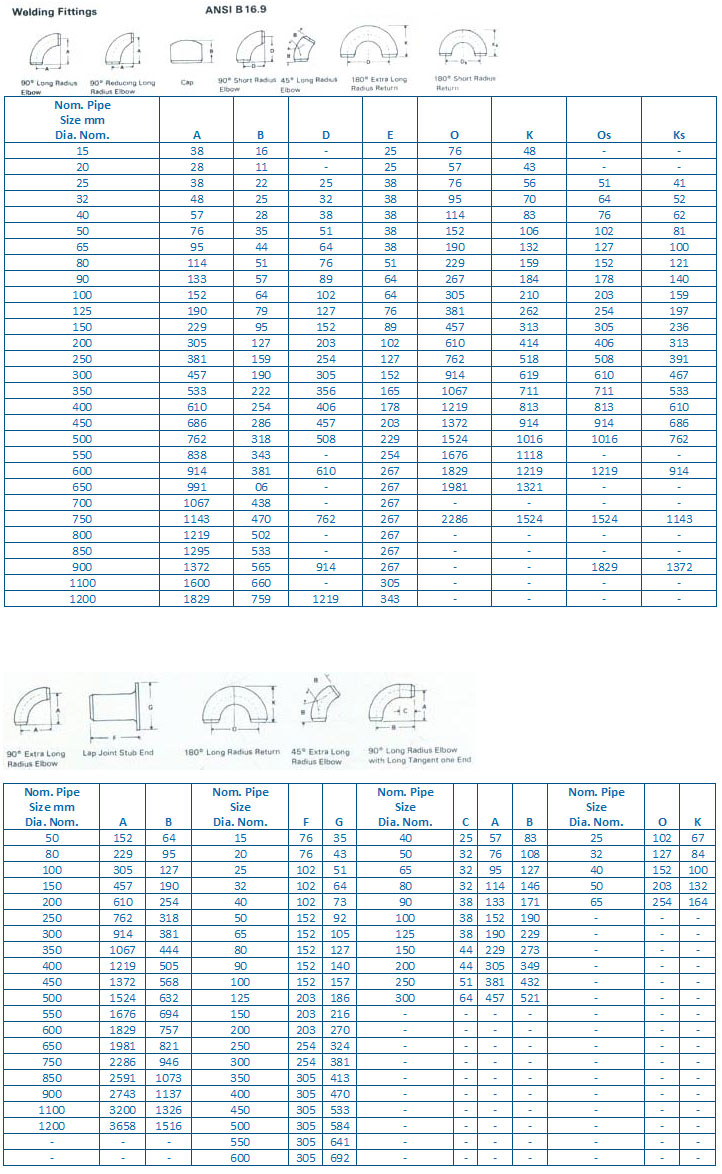

ELBOW

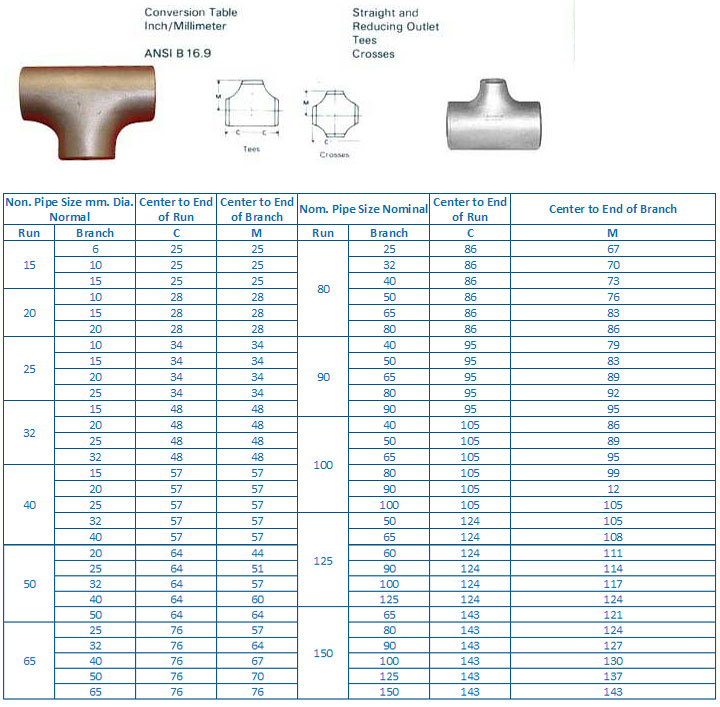

TEE

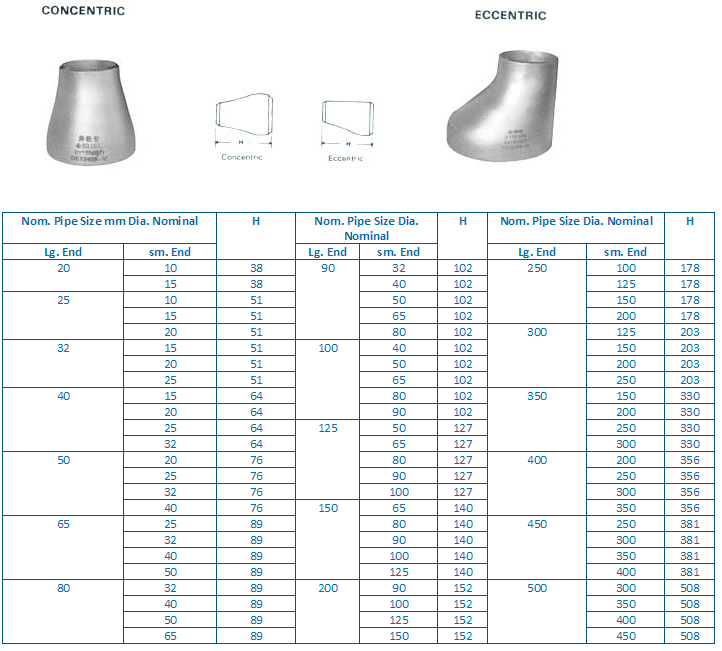

REDUCER

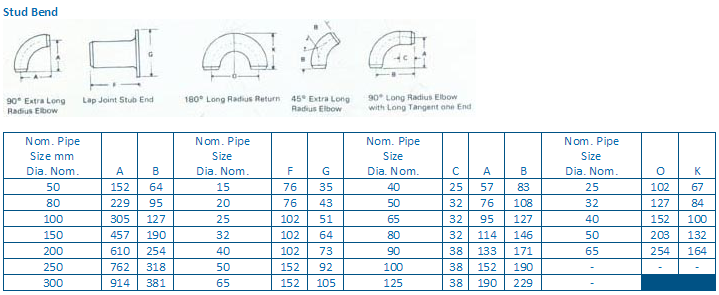

STUB END

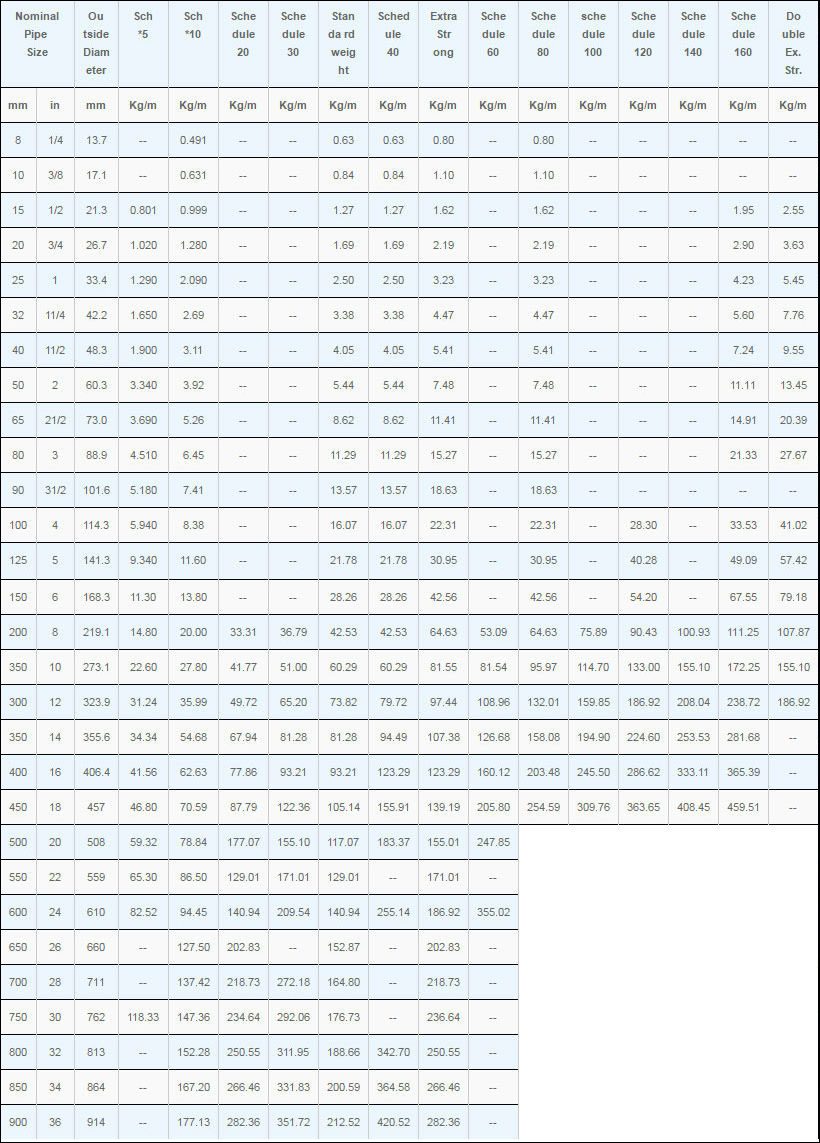

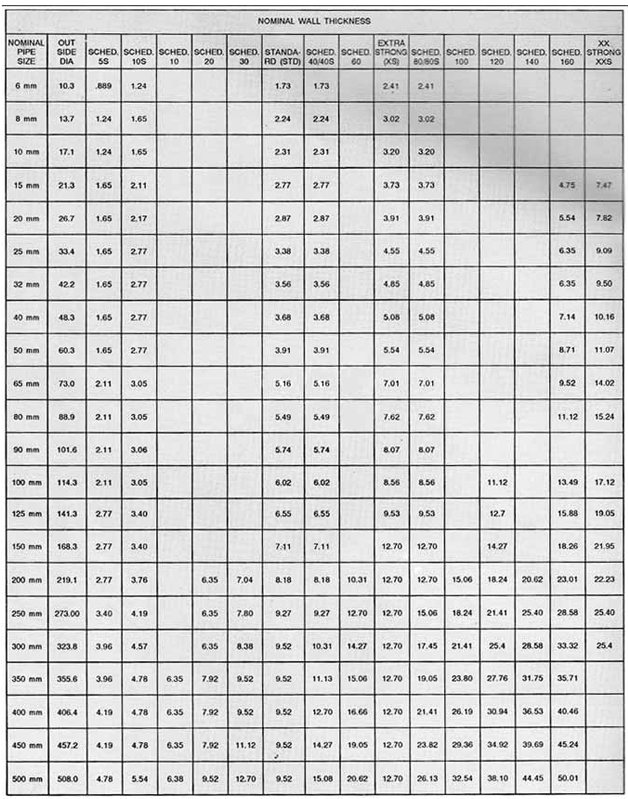

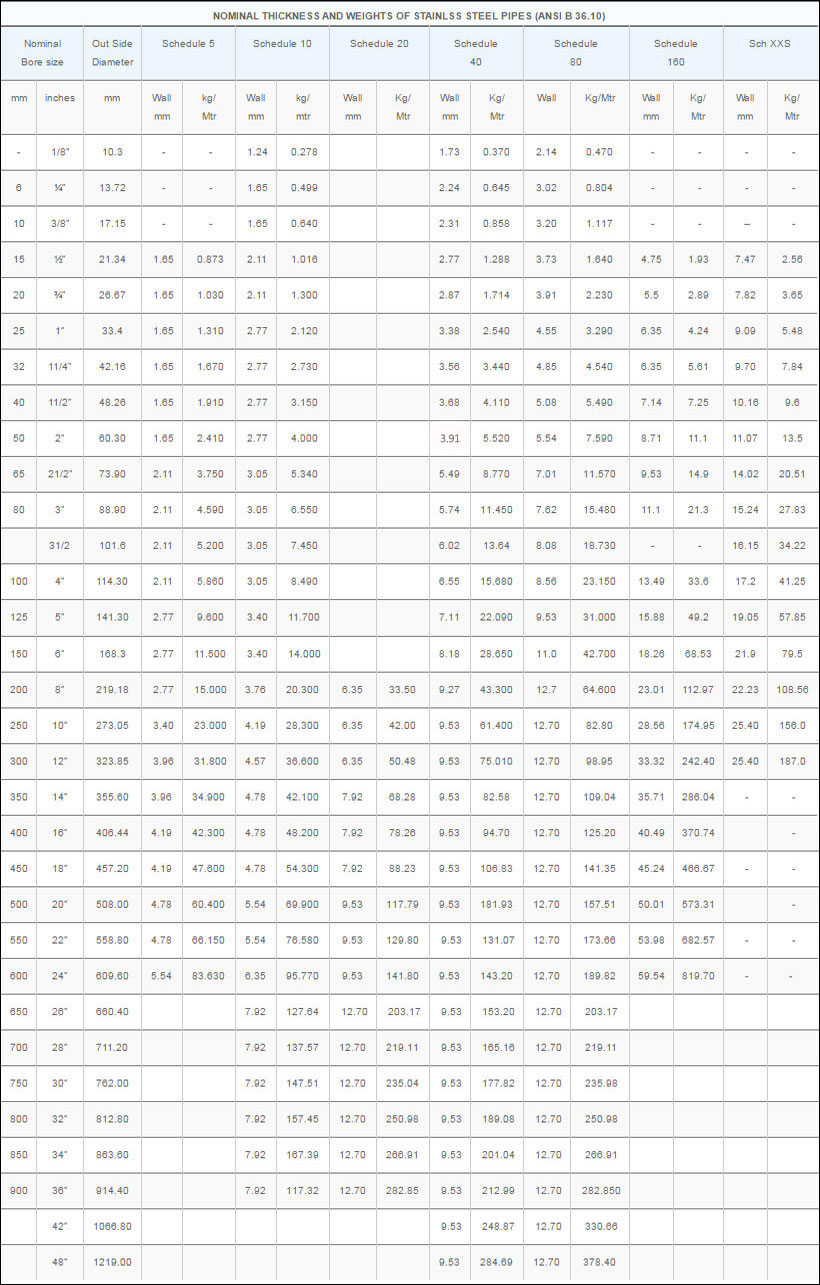

STAINLESS STEEL PIPE
| Size: | 6mm to 500mm |
| Thickness: | Sch 5, 10, 40 |
| Specification: | 202, 304, 304L, 304H, 316, 316L, 316Ti, 321, 321H, 317, 317L, 310, 310S, 409, 410, 420, 430 |

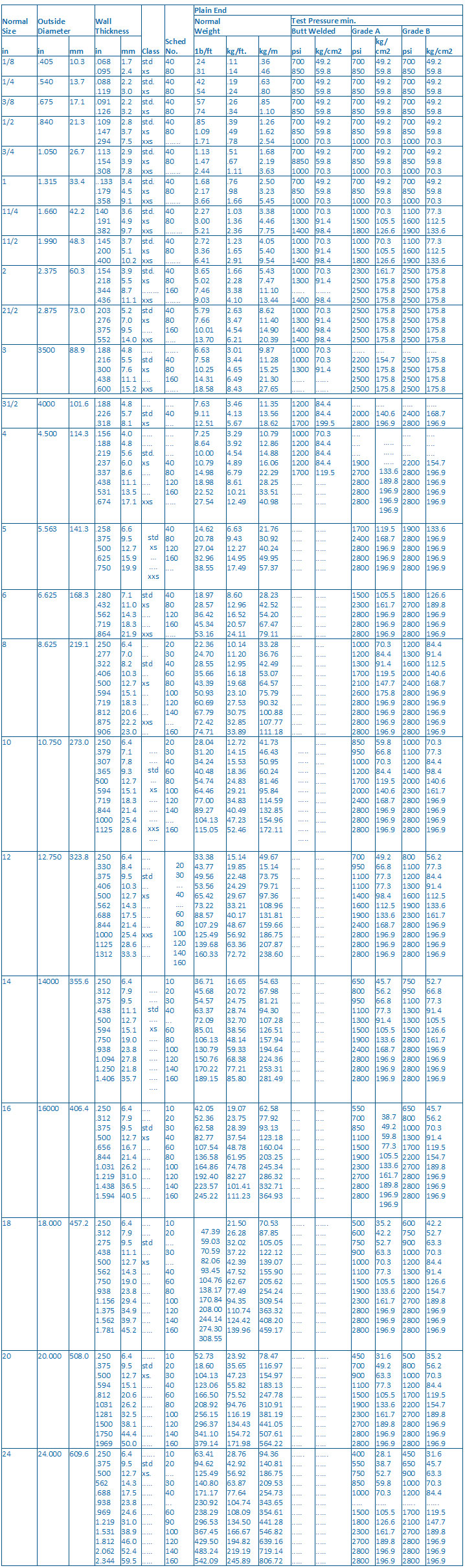

SEAMLESS PIPE
| Size | 1/4" NB TO 24" NB IN Sch 40,60,80,120,160 & XXS. (Carbon steel) |
| Carbon Steel: Specifications |
ASTM A 53, A 106, A 179, API 5L/5LX, BSS, 3059, 182, 806, 3601, 3602, DIN 17175. 2448 etc. |
-
1. Weight of Stainless Steel Pipes & Tubes
OD(mm)-W.T. (mm) x W.T.(mm)x0.02466=Kg.per Mtr.
-
2. Sheet Width Required for rolled and welded pipes
O.D.(mm) - THK(mm) x 3.14=SheetWidth
-
3. Weight of Stainless Steel Sheets
Length (mtr.) x Wdth(mtr.) x Thk(mm)x8=Kg Per Sheet
-
4. Weight of Stainless Steel Circle & Blanks
OD(mm) x OD>(mm) x Thk(mm)/160/1000=Kg Per Pcs.
-
5. Weight of Stainless Steel Rounds
Dia.(mm)xdia.(mm) x 0.00623=PerMtr.
-
6. Weight of Stainless Steel Hexagonal Rods
Dia.(mm)xDia.(mm) x 0.00679=PerMtr.
-
7. Weight of Stainless Steel Square Bars
Dia.(mm)xDia.(mm) x 0.00787=PerMtr.
-
8. Weight of Carbon Steel Pipes & Tubes
Dia.(mm)-W.T.(mm) XW.T.(mm) x 0.02466=Kg.PerMtr.
-
9. Weight of Carbon Steel Sheets & Plates
Length (mtr.) x Wdth(mtr.) x Thk(mm) x 7.85=Kg Per Sheet
-
10. Weight of Copper Pipes
OD(mm)-W.T. (mm) X W.T.(mm) x 0.0256=Kg.per Mtr.
-
11. Weight of Lead Pipes(appro.)
OD(mm)-W.T. (mm) XW.T.(mm) x 0.0345=per Mtr.
-
12. Weight of Lead Sheets(appro.)
Length (mtr.) XWidth(mtr.) XThk(mm) x 11.2=Kg Per Sheet
-
13. Weight of Alluminium Pipes(appro.)
OD(mm)-W.T. (mm) XW.T.(mm) x 0.0082=Kg per Mtr.
-
14. Weight of Alluminium Sheets(appro.)
Length (mtr.) X Width(mtr.) X Thk(mm) x 2.66=Kg Per Sheet
Tensile Strength Conversion Table
1. Kg/mm2 x 9.81 = N/mm2=MPa
2. PSi x 0.0007 = Kg/mm2
3. KSi x 1000 = PSi
4. Kg/mm2 x 1.422 = KSi
